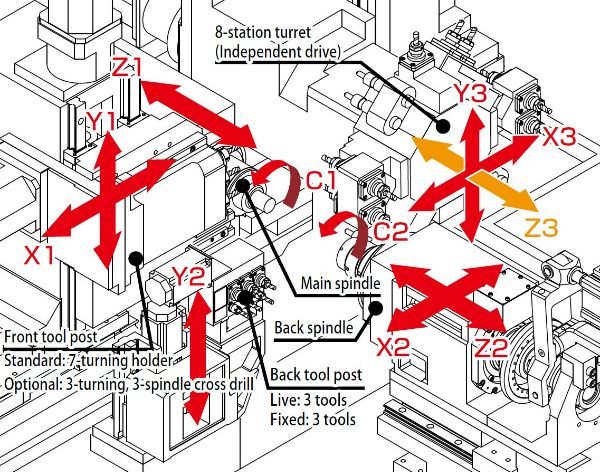

Y-axis control by all tool posts： Turret, Front gang tool post, Back tool post

●8-station turret
Mounts plural tools on the wide turret-station, and achieves the tool change by moving Y-axis.
●Back tool post with Y axis
Milling with Y-axis can be performed by equipping live tools.
Front milling with the tools on turret and back milling with the tools on back tool post can be simultaneously performed.
●3-path control
3-path control minimizes the cycle time.
●TSUGAMI’s unique, highly rigid “Double Spindle” enables heavy-duty machining.
●Abundant tooling options facilitate the machining of complex-shaped workpieces.
●Automatic programming software is provided as standard.
