Optimum for mass production of fine precision parts

●Thanks to the measures for thermal displacement and automatic compensation function, displacement of production from cold start is minimized.
■Coolant tank capacity: 50L
■Fan cooling for coolant, cooling unit for X-/Y-axis motors, and tool-height displacement compensation system are provided as standard.

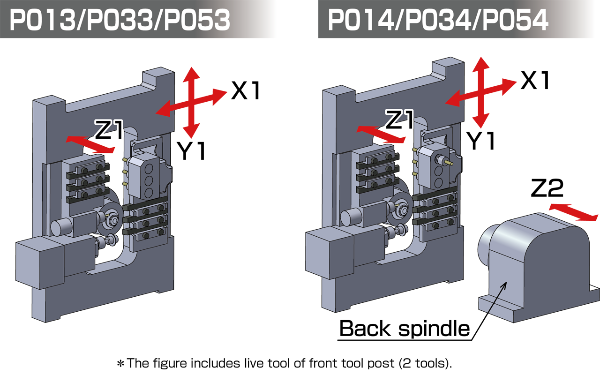

●High-speed spindle, 25,000min^-1(P01)/20,000min^-1(P03), is installed for both the main spindle and back spindle (P014/P034).

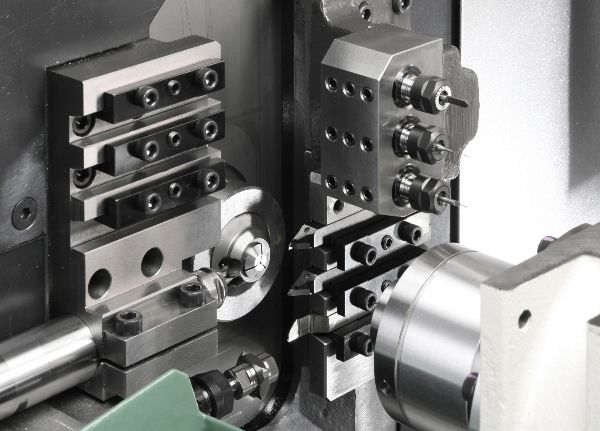

●Fine precision parts are clamped by suitable chucking-force.
●Provides easy-to-use sofrware for machining small-dia and fine precision parts: Tool height compensation function.
●Accurate processing is realized by high-rigidity base and thermal symmetrical-configuration.
