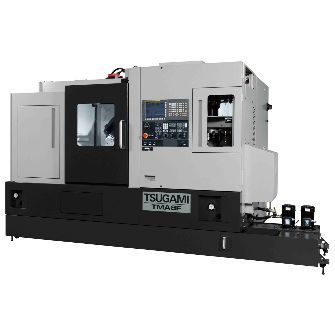

All-in-one machine with 5-axis simultaneously controlled machining for the complex-shaped parts

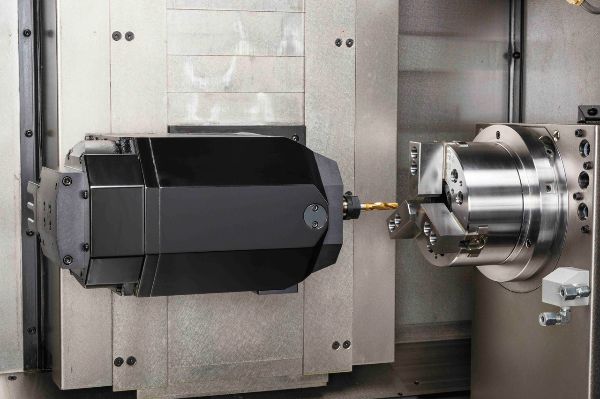

●High-speed tool spindle with max. 20,000 min-1 for high efficiency machining.

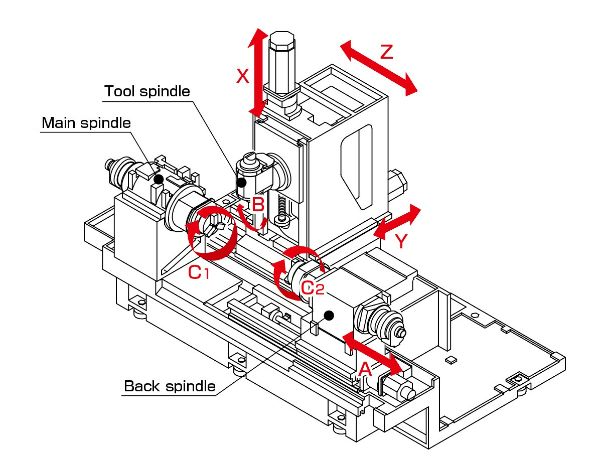

●B-axis mechanism with direct drive makes high speed and accurate positioning.
●The linear scales on the X-axis, Y-axis and Z-axis slide are provided as standard.
It can satisfy the needs of high accuracy machining.
●Up to 60 tools can be stored in the tool magazine.
●Interference check function is provided as standard to improve operability.

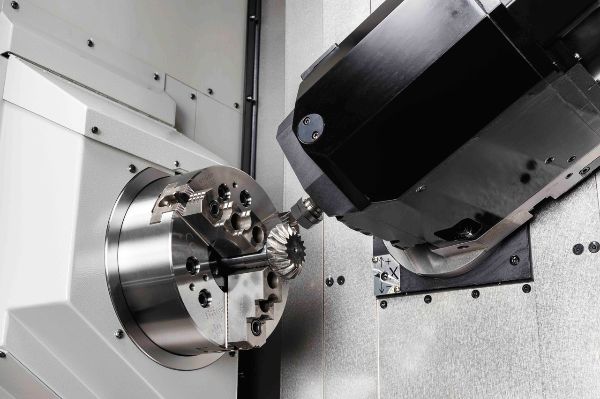

●5-axis simultaneous control enables 3-D machining of complex-shaped parts.
■Allows machining with minimum tool protrusion.
■Machining under the recommended cutting conditions of the tools is possible.
■It is possible to machine complex-shaped workpieces that a tool cannot reach by 3- or 4-axis simultaneous controlled machine.
